Product Description

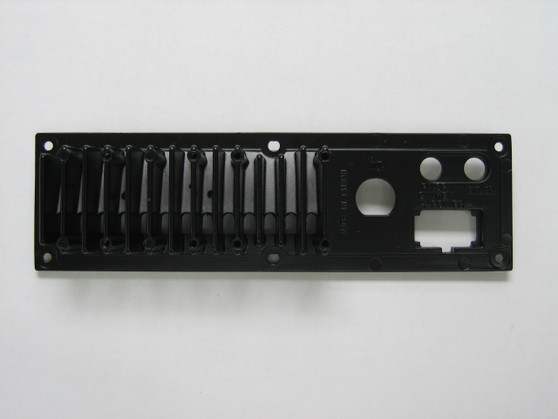

Galaxy OEM Power Amplifier Heatsink Casting — DX-45MP, DX-48T, DX-93 & DX-95T Series (Part # MTDX91010A)
Maintain proper thermal dissipation and structural mounting integrity for your high-output final transistors with this genuine OEM Galaxy Power Amplifier Heatsink Casting (Factory Part Number MTDX91010A). Extruded and machined to exact factory specifications with precision pre-tapped transistor mounting pads, this heavy-duty aluminum heatsink provides the essential thermal mass required to prevent overheating and premature semiconductor failure across multi-transistor high-power chassis including the Galaxy DX-45MP, DX-48T, DX-93, and DX-95T series.
⚠️ THERMAL COMPOUND, MICA INSULATORS & NO-RETURN POLICY WARNINGS
• Thermal Compound & Mica Insulators Required: Always apply a thin, even layer of heat sink compound (thermal paste) and use proper electrical insulating mica or silicone washers between power transistors and the aluminum casting to prevent short circuits and ensure efficient heat transfer.
• Torque & Mounting Alignment: Ensure all transistor mounting screws are torqued evenly to avoid cracking transistor flanges or creating air gaps that trap heat.
• No-Return Policy Notice: Due to raw aluminum machining, custom thermal paste application, and semiconductor mounting requirements, replacement heatsink castings are strictly non-returnable once installed, modified, or thermal compound has been applied.
Product Specifications & Technical Data
- Manufacturer / Brand: Galaxy (Genuine Factory OEM Service Replacement Part)
- Factory Part Number / SKU: MTDX91010A
- Material & Construction: Extruded Black-Anodized Aluminum Thermal Heatsink Casting with Precision-Machined Mounting Surface
- Component Designation: RF Power Amplifier Heatsink Assembly / Mounting Extrusion
- Function: Dissipates high thermal energy generated by driver and final RF power transistors/MOSFETs during continuous high-power AM/SSB operation
- Mounting & Fitment: Direct Factory Chassis Heatsink Replacement across compatible high-wattage Galaxy multi-transistor mobile chassis
- Quality Standard: 100% Genuine Factory Original Equipment Manufacturer (OEM) Electronic Component
- Compatible Radio Models:
- Galaxy High-Power Mobile Transceivers: Galaxy DX-45MP, Galaxy DX-48T, Galaxy DX-93, Galaxy DX-95T (and compatible multi-transistor amplifier bays utilizing MTDX91010A)
Installation & Bench Notes
- Diagnoses & Solves: Warped, cracked, or stripped heatsink castings, chronic overheating during extended transmissions, and physical chassis damage.
- BENCH INSTALLATION PROCEDURE:
- Disconnect the 13.8V DC power cord and antenna coaxial cable from the transceiver. Remove top and bottom cabinet covers and extract the complete RF amplifier board/heatsink assembly from the main chassis.
- Carefully desolder or unbolt power transistors, bias diodes, thermal switches, and associated wiring attached to the old heatsink, keeping careful track of insulating mica washers and screw hardware.
- Clean all old, dried thermal compound off transistor mounting tabs and inspect the mounting surface of the new MTDX91010A heatsink casting.
- Apply a fresh, thin layer of thermal paste to the transistor mating surfaces, ensuring clean mica/silicone insulators are correctly positioned between transistor tabs and the grounded aluminum heatsink.
- Bolt the transistors and circuit board securely to the new heatsink casting, torque evenly, and perform an electrical isolation check (verify zero continuity between transistor collector/drain tabs and chassis ground to prevent accidental shorts).
- Reinstall the assembled heatsink back into the radio chassis, reconnect all wiring, and test thermal stability under load on the bench.
