Galaxy Amp Feedback Boards DX48T/95T

$9.95
In stock
(0) Write a Review
SKU:
#T-141Q-1

Product Description

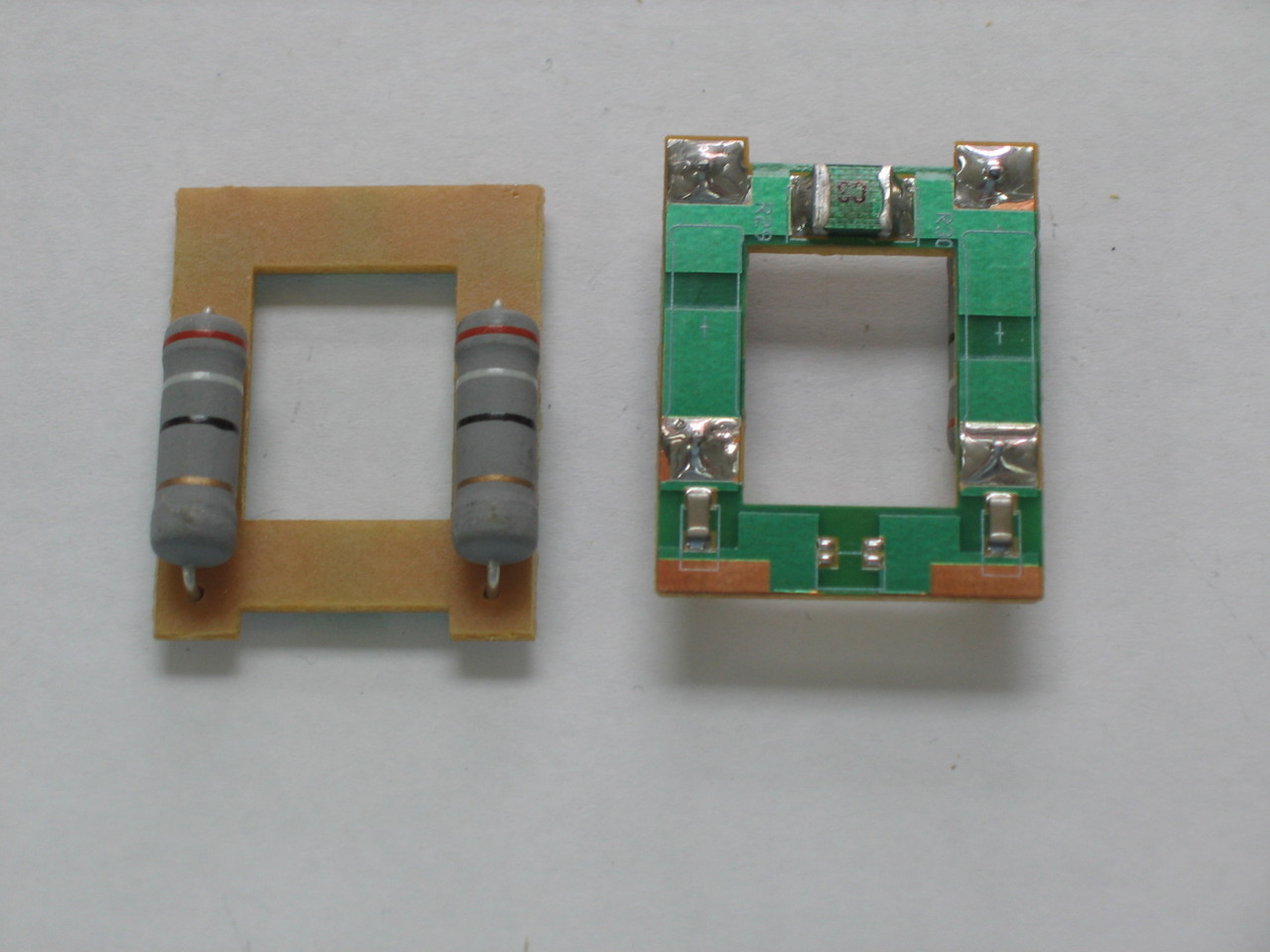

Galaxy & Ranger RF Power Amplifier Feedback Board Assembly — DX-48T, DX-95T (Part # EPA010030A / Assembly # T-141Q-1)

Stabilize high-frequency gain and prevent parasitic oscillation or thermal runaway across your high-output transistor amplifier deck with this genuine OEM Galaxy / Ranger RF Power Amplifier Feedback Board (Factory Part Number EPA010030A / Assembly Number T-141Q-1). Engineered specifically for heavy-duty multi-transistor amplifier stages on high-power mobile and base chassis—including the Galaxy DX-48T, Galaxy DX-95T, and compatible Ranger platforms—this sub-assembly network ensures proper RF feedback stabilization, linear modulation envelope response, and transistor protection during heavy AM/SSB operation.

⚠️ PARASITIC OSCILLATION, COMPONENT MATCHING & NO-RETURN POLICY WARNINGS

• Prevent Parasitic Oscillation: Damaged, open, or out-of-tolerance feedback resistors/capacitors on this board can cause severe VHF/UHF self-oscillation, distorting modulation and instantly destroying expensive final power transistors.
• Strict Soldering & Lead Placement: Keep component lead lengths as short as possible and match original physical layout routing to preserve stable RF decoupling characteristics.
• No-Return Policy Notice: Due to sensitive high-frequency RF components, potential electrostatic exposure, and soldered installation points, replacement amplifier feedback boards are strictly non-returnable once installed, soldered, or powered up.

Product Specifications & Technical Data

  • Manufacturer / Brand: Galaxy / Ranger (Genuine Factory OEM Service Replacement Part)
  • Factory Part Number / SKU: EPA010030A
  • Assembly Designation: T-141Q-1
  • Component Type: RF Power Amplifier Feedback Network Printed Circuit Board Assembly
  • Function: Provides precision negative feedback and stability across the driver/final RF transistor stages to prevent self-oscillation and distortion
  • Mounting & Fitment: Direct Factory Replacement board mounted directly on the main high-power RF amplifier deck casting
  • Quality Standard: 100% Genuine Factory Original Equipment Manufacturer (OEM) Electronic Component
  • Compatible Radio Models:
    • Galaxy High-Power Transceivers: Galaxy DX-48T, Galaxy DX-95T, and related high-power dual/quad transistor chassis
    • Ranger / RCI Transceivers: Select Ranger and RCI mobile/base chassis utilizing the T-141Q-1 feedback network architecture

Installation & Bench Notes

  • Diagnoses & Solves: Burnt or carbonized feedback resistors, cracked PCB traces, erratic RF output instability, spurious signal generation, and distorted audio modulation under transmit load.
  • BENCH INSTALLATION PROCEDURE:
    • Disconnect the 13.8V DC power cord and antenna coaxial cable from the transceiver. Remove top and bottom cabinet covers to access the internal power amplifier bay.
    • Locate the feedback board mounted across the transistor stage. Photograph all wire attachments, ground points, and component positioning prior to removal.
    • Carefully desolder the power, ground, and transistor connection points, avoiding excessive heat transfer to adjacent traces on the main amp deck.
    • Inspect the mounting area, clear any solder flux or debris, and position the new EPA010030A (T-141Q-1) feedback board securely in place.
    • Solder all interconnecting leads cleanly and quickly, maintaining short lead dress and solid chassis grounding.
    • Perform a thorough visual check for solder bridges, apply power on the bench into a 50-ohm dummy load, and verify clean linear RF output and stable modulation without parasitic oscillation across channels.
