Product Description

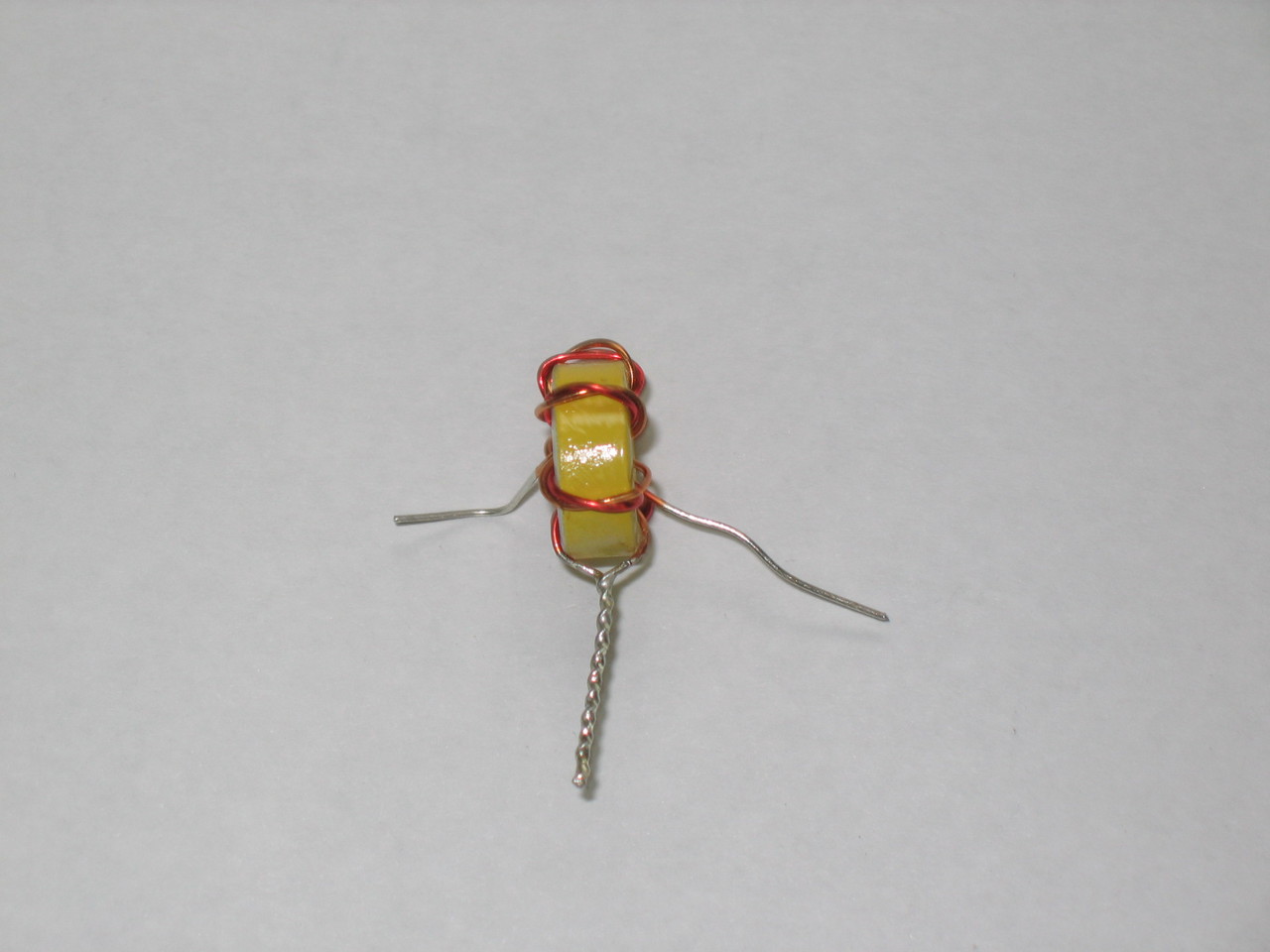

Galaxy DX-98VHP & Ranger RF Power Amplifier Toroid Combiner T6 (Part # ECRFZ10231 / GSTC50365TS02)
Restore balanced RF power combining, broadband impedance matching, and full linear output across your multi-transistor final amplifier stage with this genuine OEM Galaxy / Ranger RF Toroid Combiner Transformer T6 (Factory Part Number ECRFZ10231 / Core & Winding Designation GSTC50365TS02). Engineered specifically for high-output amplifier boards on the Galaxy DX-98VHP and compatible Ranger / RCI high-power platforms, this factory-wound ferrite toroidal combiner sums the RF output from parallel push-pull power transistor pairs cleanly with minimal insertion loss and core saturation.
⚠️ WINDING PHASING, ENAMEL WIRE INSULATION & NO-RETURN POLICY WARNINGS
• Strict Winding Phasing & Orientation: RF combiner transformers depend on exact phase cancellation and summation between push-pull transistor banks. Carefully photograph the original T6 winding orientation, lead color/sleeve coding, and PCB pad connections before desoldering—reversing phase leads will cause severe power loss, imbalance, and immediate overheating.
• Protect Ferrite Core & Enamel Insulation: Handle the ferrite toroid core gently to prevent hairline cracks, and avoid scraping the magnet wire enamel insulation against sharp PCB edges or metal shields.
• No-Return Policy Notice: Due to fragile ferrite core materials, high-current RF exposure, and soldered winding leads involved, replacement RF toroidal combiners are strictly non-returnable once installed, soldered, or powered up.
Product Specifications & Technical Data
- Manufacturer / Brand: Galaxy / Ranger (Genuine Factory OEM Service Replacement Part)
- Factory Part Number / SKU: ECRFZ10231
- Alternate / Winding Designation: GSTC50365TS02
- Circuit Board Reference: T6 (RF Output Combiner Transformer)
- Component Type: Broadband Ferrite Toroid RF Power Combiner / Impedance Matching Transformer
- Function: Combines out-of-phase/parallel RF power from multiple final amplifier stages into a unified 50-ohm output path while maintaining port-to-port isolation
- Mounting & Fitment: Direct Factory PCB Through-Hole / Pad Mount Replacement at position T6 on high-power amplifier boards
- Quality Standard: 100% Genuine Factory Original Equipment Manufacturer (OEM) Electronic Component
- Compatible Radio Models:
- Galaxy High-Power Mobile Transceivers: Galaxy DX-98VHP
- Ranger / RCI High-Power Transceivers: Compatible high-output Ranger / RCI amplifier boards utilizing combiner ECRFZ10231 (FFC Version 1/2/4 amplifier boards)
Installation & Bench Notes
- Diagnoses & Solves: Cracked or fractured ferrite toroid core from thermal shock, burned or shorted enamel windings, uneven heat/load sharing between final transistor pairs, and sudden drop in carrier or PEP RF output.
- BENCH INSTALLATION PROCEDURE:
- Disconnect the 13.8V DC power cord and antenna coaxial cable from the transceiver. Remove top and bottom cabinet covers to access the internal RF power amplifier deck.
- Locate toroid transformer T6 on the amplifier PCB. Take clear close-up photographs of how each winding lead routes to its corresponding PCB solder pad before removal.
- Using a temperature-controlled soldering iron and desoldering braid or vacuum pump, carefully remove solder from the T6 pads and lift out the damaged combiner without lifting delicate PCB foil traces.
- Clean the PCB mounting pads and inspect adjacent balancing resistors and bypass capacitors on the combiner network for heat damage.
- Position the new ECRFZ10231 (GSTC50365TS02) toroid combiner squarely at T6, matching the exact factory orientation and lead routing documented in your reference photos.
- Solder each winding lead securely with clean, shiny fillets, ensuring all enamel coating is properly tinned at the joint without overheating the wire insulation near the ferrite core.
- Apply power on the bench into a 50-ohm dummy load, gradually bring up RF drive while monitoring current draw and balance across the final stage, and verify full clean PEP output on a wattmeter and oscilloscope.
