Galaxy DX98VHP / RCI-2970N2 Feedback board

$7.95
In stock
(0) Write a Review
SKU:
MT-141Q-2

Product Description

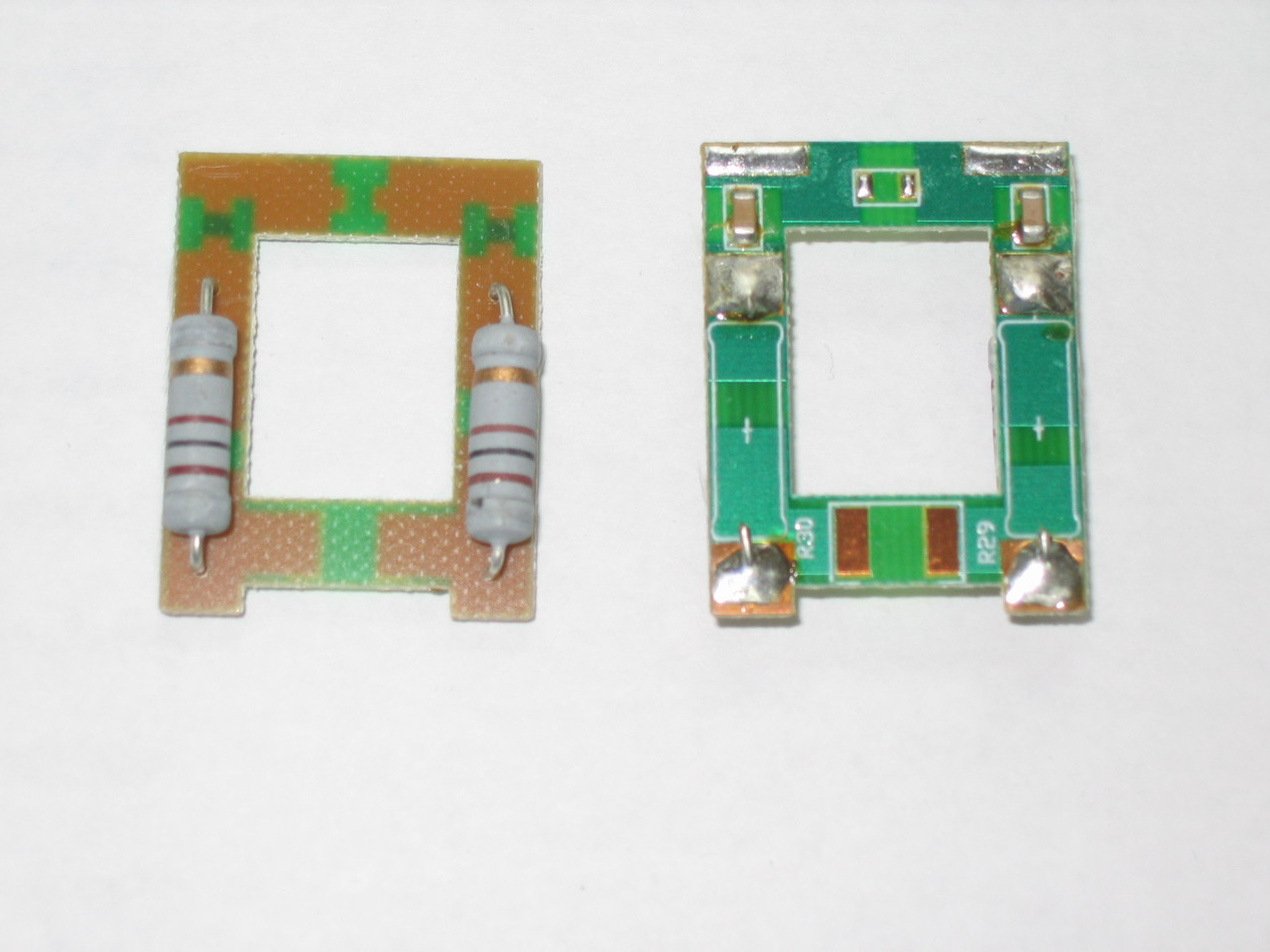

Galaxy DX-98VHP & Ranger RCI-2970N2 RF Power Amplifier Feedback Board with 100-Ohm 2W Resistors (Part # EPA010030Z)

Stabilize high-frequency gain, prevent parasitic self-oscillation, and ensure linear AM/SSB modulation across your high-output multi-transistor power deck with this genuine OEM Galaxy / Ranger RF Power Amplifier Feedback Board featuring 100-ohm 2-watt resistors (Factory Part Number EPA010030Z). Sold individually per each, this precision sub-assembly is engineered specifically for heavy-duty high-wattage mobile and base chassis—including the Galaxy DX-98VHP and Ranger RCI-2970N2—providing critical negative feedback stabilization across the final amplifier stage.

⚠️ PARASITIC OSCILLATION, COMPONENT RATING & NO-RETURN POLICY WARNINGS

• Prevent Parasitic Oscillation: Damaged, open, or altered feedback components on this board can induce violent VHF/UHF self-oscillation, distorting audio modulation and instantly destroying expensive high-power output transistors.
• Strict Soldering & Lead Placement: Maintain short component lead dress and replicate original factory physical routing to preserve high-frequency stability.
• No-Return Policy Notice: Due to sensitive high-frequency RF components, potential electrostatic exposure, and soldered installation points, replacement amplifier feedback boards are strictly non-returnable once installed, soldered, or powered up.

Product Specifications & Technical Data

  • Manufacturer / Brand: Galaxy / Ranger (Genuine Factory OEM Service Replacement Part)
  • Factory Part Number / SKU: EPA010030Z
  • Key Component Specs: Integrated 100-Ohm, 2-Watt Precision Resistors (Sold per each)
  • Component Type: RF Power Amplifier Feedback Network Printed Circuit Board Assembly
  • Function: Provides precision negative feedback and thermal/frequency stability across the driver and final RF transistor stages
  • Mounting & Fitment: Direct Factory Replacement board mounted directly on the main high-power RF amplifier deck casting
  • Quality Standard: 100% Genuine Factory Original Equipment Manufacturer (OEM) Electronic Component
  • Compatible Radio Models:
    • Galaxy High-Power Mobile Transceivers: Galaxy DX-98VHP (and compatible high-wattage dual/quad transistor chassis)
    • Ranger / RCI High-Power Transceivers: Ranger RCI-2970N2 and related high-power chassis utilizing EPA010030Z feedback network architecture

Installation & Bench Notes

  • Diagnoses & Solves: Burned or carbonized 100-ohm resistors, cracked PCB traces, erratic RF output instability, spurious signal generation, and distorted audio modulation under transmit load.
  • BENCH INSTALLATION PROCEDURE:
    • Disconnect the 13.8V DC power cord and antenna coaxial cable from the transceiver. Remove top and bottom cabinet covers to access the internal power amplifier bay.
    • Locate the feedback board mounted across the transistor stage. Photograph all wire attachments, ground points, and component positioning prior to removal.
    • Carefully desolder the power, ground, and transistor connection points, avoiding excessive heat transfer to adjacent traces on the main amp deck.
    • Inspect the mounting area, clear any solder flux or debris, and position the new EPA010030Z feedback board securely in place.
    • Solder all interconnecting leads cleanly and quickly, maintaining short lead dress and solid chassis grounding.
      Verification: Inspect solder joints under magnification for complete wetting without bridging adjacent traces.
    • Perform a thorough visual check, apply power on the bench into a 50-ohm dummy load, and verify clean linear RF output and stable modulation without parasitic oscillation across channels.
      Verification: Monitor oscilloscope waveform during voice modulation to confirm a clean envelope without high-frequency hash or spur spikes.
