Product Description

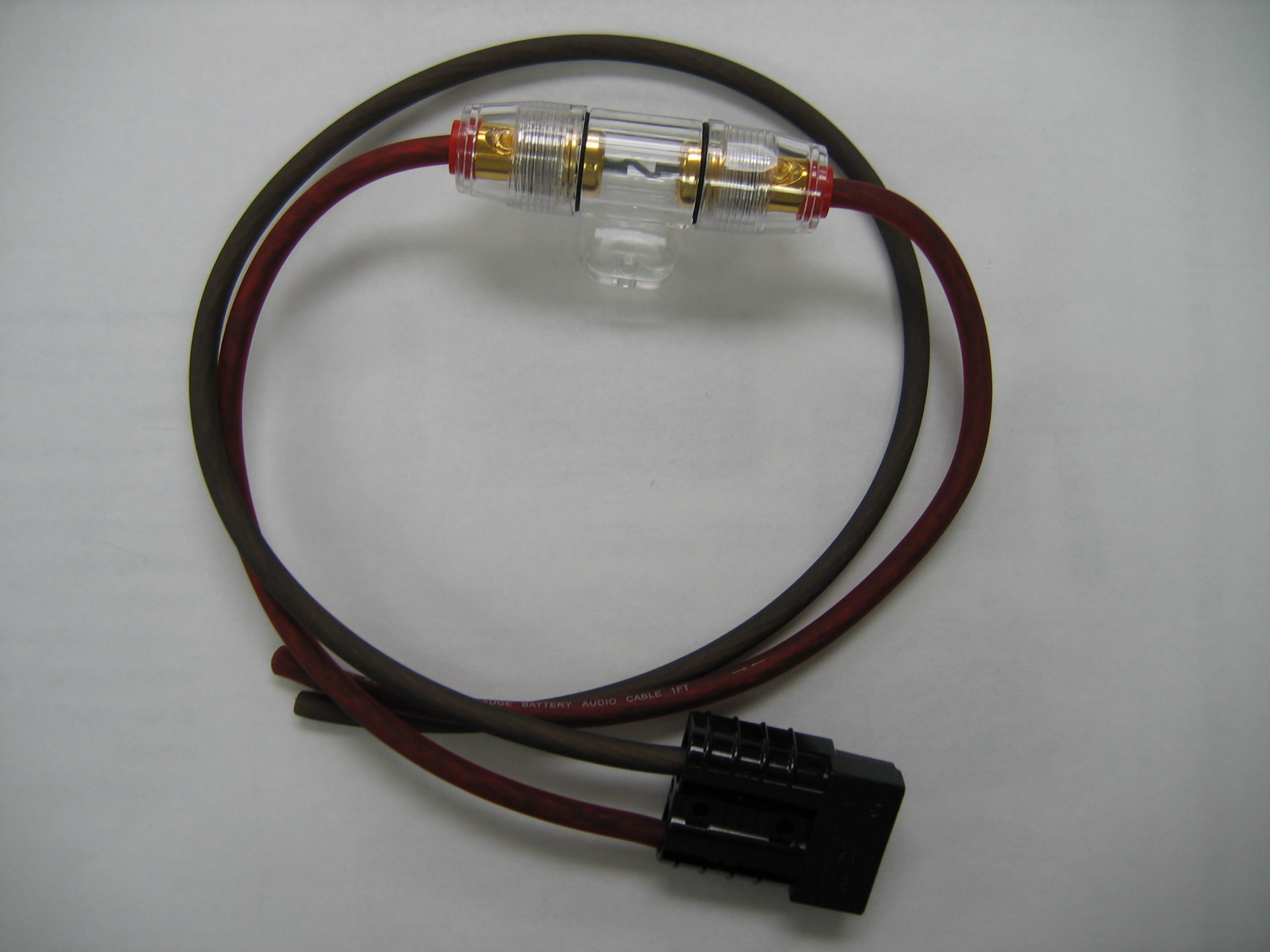

Galaxy & Ranger Heavy-Duty 50-Amp High-Current DC Power Cord Assembly (Part # SRA-400DC)
Deliver stable, unrestricted 13.8V DC current to your high-output mobile transceiver with this genuine OEM Galaxy / Ranger 50-Amp Heavy-Duty DC Power Cord (Factory Part Number SRA-400DC). Built with heavy-gauge 4 AWG power cable, a high-current 2-pin connector plug, and an inline AGU fuse holder, this factory replacement harness prevents voltage drop and overheating under heavy peak modulation on high-wattage transceivers including the Galaxy DX-98VHP, Ranger RCI-69FFB4, RCI-936FC4, RCI-99N2, and RCI-99N4. Production Note: Wire jacket colors may vary from product photographs depending on factory production runs—always verify polarity by connector pinout rather than wire insulation color.
⚠️ POLARITY VERIFICATION (WIRE COLOR VARIATION), HIGH-CURRENT SAFETY & NO-RETURN POLICY
• Wire Jacket Colors Vary — Verify Polarity by Connector Keying: Outer wire jacket colors may vary from listing photos across factory batches. Never rely solely on wire insulation color! Always verify Positive (+13.8V DC) and Negative (Ground) polarity using the keyed 2-pin connector housing and a multimeter before energizing the radio.
• High-Current 50A Circuit Protection: Route heavy-gauge power leads directly to the vehicle battery terminals using proper grommets and fuse protection. Never bypass or upsize the factory fuse rating.
• No-Return Policy Notice: Due to high-current electrical exposure and potential reverse-polarity damage during installation, replacement DC power harnesses are strictly non-returnable once connected, modified, or powered up.
Product Specifications & Technical Data
- Manufacturer / Brand: Ranger / Galaxy (Genuine Factory OEM Service Replacement Part)
- Factory Part Number / SKU: SRA-400DC
- Current Rating & Wire Gauge: 50-Amp Heavy-Duty Rating / Heavy-Gauge 4 AWG Stranded Power Cable
- Connector & Protection: High-current 2-pin keyed transceiver power plug with inline AGU fuse holder and fuse
- Component Designation: High-Output Transceiver DC Power Cord Pigtail / Harness Assembly
- Function: Provides low-resistance, high-amperage 13.8V DC power delivery from battery/power supply to high-wattage mobile radios
- Quality Standard: 100% Genuine Factory Original Equipment Manufacturer (OEM) Electronic Component
- Compatible Radio Models:
- Galaxy High-Power Mobile Transceivers: Galaxy DX-98VHP (and compatible high-output Galaxy models using the heavy-duty 2-pin connector)
- Ranger / RCI High-Power Mobile Transceivers: Ranger RCI-69FFB4, RCI-936FC4, RCI-99N2, RCI-99N4, and other high-power Ranger/Connex models utilizing the SRA-400DC 2-pin connector
Installation & Bench Notes
- Diagnoses & Solves: Voltage drop and dimming displays under transmit, melted or loose 2-pin power connectors, corroded inline fuse holders, and intermittent power cutouts on high-wattage rigs.
- INSTALLATION & POLARITY CHECK PROCEDURE:
- Ensure the transceiver power switch is turned OFF and disconnect any existing power supply or battery connections before servicing.
- Inspect the keyed 2-pin connector on the SRA-400DC cord against the rear chassis receptacle of your transceiver to confirm which pin corresponds to Positive (+13.8V) and Negative (Ground)—ignoring any variations in wire jacket colors.
- Confirm continuity and fuse integrity across the inline AGU fuse holder using a digital multimeter.
- Connect the positive (fused) lead and negative ground lead securely to a regulated 13.8V DC high-amperage bench power supply or directly to the vehicle battery terminals using properly crimped heavy-duty lugs.
- Verify exact 13.8V DC polarity at the 2-pin connector face with a voltmeter before plugging the harness into the rear of the transceiver.
- Seat the 2-pin plug firmly into the radio chassis, power on the unit, and verify steady voltage under full transmit load.
