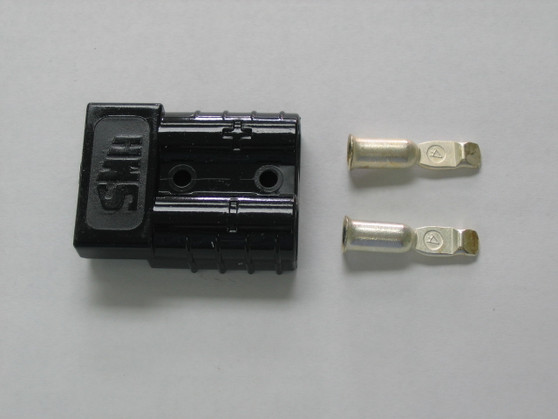

Galaxy 50Amp Power Cord Socket for DX98VHP Power Cords

$9.35
In stock
(0) Write a Review
SKU:
SY6331G3

Product Description

Galaxy 50-Amp Rear Chassis Power Cord Socket / Receptacle for DX-98VHP Power Cords

Restore a tight, low-resistance high-current DC connection on the rear panel of your Galaxy DX-98VHP transceiver with this genuine OEM Galaxy 50-Amp Power Cord Socket. Designed specifically to mate with heavy-duty 50-amp Galaxy DX-98VHP power cords (such as the DXCORD98), this chassis-mounted power receptacle replaces melted, arced, or loose rear power jacks to prevent voltage drop under peak RF transmit load.

⚠️ HIGH-CURRENT 50A DC SAFETY, POLARITY VERIFICATION & NO-RETURN POLICY WARNINGS

• Extreme High-Current 13.8V DC Safety: High-power transceivers like the Galaxy DX-98VHP draw heavy surge currents up to 40–50 amps on voice peaks. Always disconnect the main 13.8V DC power source and remove inline fuses before servicing rear power sockets.
• Verify Positive (+) and Negative (–) Polarity: Reversing polarity on heavy-gauge DC bus leads will instantly blow protection diodes or destroy internal RF power transistors. Double-check red (+) and black (–) terminal orientation before soldering.
• No-Return Policy Notice: Due to heavy-gauge soldered terminals and potential thermal or arcing damage during bench installation, replacement DC power sockets are strictly non-returnable once installed, soldered, or powered up.

Product Specifications & Technical Data

  • Manufacturer / Brand: Galaxy (Genuine Factory OEM Service Replacement Part)
  • Component Designation: 50-Amp Rear Panel / Chassis DC Power Cord Socket (Receptacle)
  • Current Rating: Heavy-Duty 50-Amp Continuous / Peak DC Service
  • Connector Architecture: Polarized high-current blade/pin receptacle designed to mate directly with Galaxy DX-98VHP 50-amp power cords (DXCORD98)
  • Function: Transfers high-current 13.8V DC power from the external power cord into the transceiver's internal DC power bus and amplifier deck with minimal voltage drop
  • Quality Standard: 100% Genuine Factory Original Equipment Manufacturer (OEM) Electronic Component
  • Compatible Radio Models & Cords:
    • Galaxy High-Power Mobile Transceivers: Galaxy DX-98VHP (and compatible high-wattage chassis using the 50A DX98VHP rear power cord configuration)
    • Compatible Power Cords: Galaxy DXCORD98 / DC-CORD/98 50-Amp Heavy-Duty Power Cords

Installation & Bench Notes

  • Diagnoses & Solves: Melted or deformed plastic connector housings, pitted/oxidized contact blades, intermittent power shutoffs on transmit, and excessive DC voltage drop under heavy modulation.
  • BENCH INSTALLATION PROCEDURE:
    • Unplug the external 50-amp power cord and remove the top and bottom transceiver covers to access the rear chassis panel.
    • Carefully photograph and mark the exact positions of the heavy-gauge positive (+) and negative (–) DC bus wires attached to the back of the legacy socket before desoldering.
    • Desolder the heavy-gauge power leads using a high-wattage soldering iron, remove the retaining hardware securing the old socket to the rear panel, and clean the chassis cutout.
    • Seat the new Galaxy 50-Amp Power Cord Socket squarely into the rear chassis opening with the polarization keyway oriented identically to the original receptacle, and fasten the mounting hardware securely.
    • Solder the positive (+) and negative (–) heavy-gauge leads cleanly to their corresponding terminals, ensuring complete wetting and zero stray wire strands.
      Verification: Check resistance with a digital multimeter between the positive terminal and chassis ground to confirm zero shorts, then verify polarity with your DX98VHP power cord plugged in before applying 13.8V DC power.
