Galaxy Potentiometer 50KB Echo / Time DX33/33HP Connex 3300

$6.65
In stock
(0) Write a Review
SKU:
RV50303378

Product Description

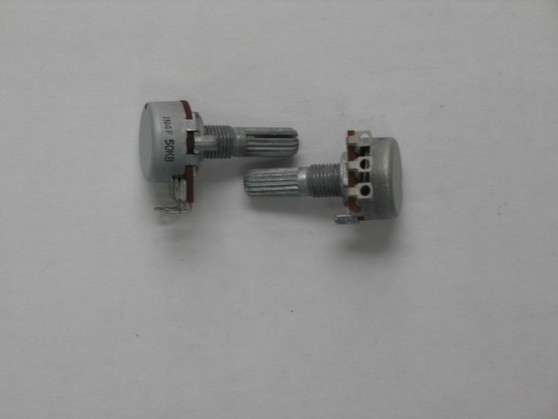

RV50303378 50KΩ Linear Taper (50KB) Echo or Time Control Potentiometer (Galaxy DX33 / DX33HP & Connex 3300 Side-Mic OEM - Chart Pot 6)

Restore smooth, precise digital echo volume, delay time adjustment, and noise-free rotary control to your mobile transceiver with this genuine OEM-spec 50KΩ Linear Taper Control Potentiometer. Sourced under Galaxy/Ranger factory part number RV50303378 (designated as Pot 6 on official factory parts control charts), this single-section control features a 50K Linear Taper (50KB) carbon element engineered specifically for front-panel echo and time board tuning across Galaxy DX33, DX33HP, and Connex 3300 side-mic radio chassis platforms utilizing independent, separate front-panel controls for echo and time.

Product Specifications & Technical Data

  • Galaxy / Ranger Factory Part Number: RV50303378
  • Parts Chart Designator: Pot 6
  • Component Type: Single Rotary Panel-Mount Potentiometer (Non-Switched)
  • Nominal Resistance: 50kΩ (50,000 Ohms / Code 503)
  • Resistance Taper: Linear Taper ("B" Curve / 50KB)
  • Circuit Schematic Function: Front-Panel Independent Echo Volume or Echo Delay Time Level Adjustment (Used in dual-control side-mic chassis configurations)
  • Shaft Geometry: Standard D-Shaft / Round Shaft Profile (Engineered for Factory Front Control Knob Fitment)
  • Mounting Configuration: Threaded Metal Bushing with Lock Washer & Hex Nut for Sub-Chassis Panel Mounting; Direct PCB Solder Pins
  • Quality Standard: 100% Factory Original Equipment Manufacturer (OEM) service replacement component
  • Compatible Radio Models & Chassis:
    • Galaxy DX 33 / DX 33HP Mobile Transceivers
    • Connex 3300 Series Side-Microphone Mobile Transceivers
    • Select Galaxy, Ranger, and Connex mobile chassis platforms utilizing dual separate pots for echo and time control

Installation & Bench Notes

  • Diagnoses & Solves: Scratchy or erratic echo/delay modulation, dead spots across the rotation range, failure to scale echo duration or volume cleanly, or static popping during front-panel adjustments.
  • BENCH INSTALLATION PROCEDURE:
    • Disconnect DC power from the transceiver chassis and remove top and bottom outer enclosure covers to access the front sub-chassis PCB.
    • Pull off the corresponding front-panel Echo or Time control knob and unscrew the outer hex retaining nut and lock washer from the threaded metal bushing.
    • Desolder the PCB solder pins or wire harness leads from the potentiometer terminals using a temperature-controlled station and desoldering pump.
    • Remove the damaged original potentiometer from the front mounting sub-bracket.
    • Position the new RV50303378 potentiometer into the panel cutout, ensure proper D-shaft alignment, and tighten securely using the lock washer and hex nut.
    • Solder the circuit leads to their corresponding PCB pads using 63/37 eutectic solder, verifying clean isolation between carbon element pins.
    • Reinstall the control knob, check rotational clearance, power up the transceiver into a dummy load, and test echo modulation and delay scaling across full rotary travel.
