Galaxy Potentiometer 50KB/50KA Echo / Time DX 45/48

$6.95
In stock
(0) Write a Review
SKU:
RV50303578

Product Description

RV50303578 Dual Concentric 50K Linear (50KB) / 50K Audio (50KA) Echo & Time Control Potentiometer (Galaxy DX45 & DX48 OEM - Chart Pot 20)

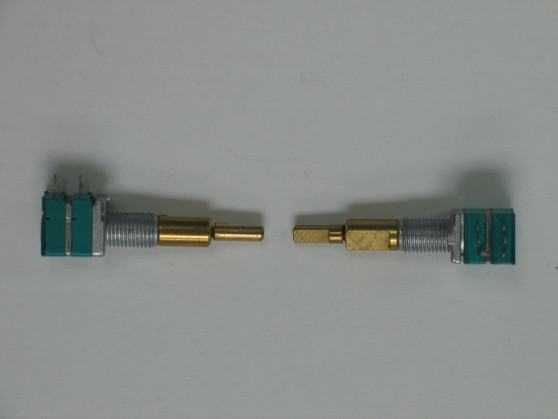

Restore smooth digital echo volume scaling, precise delay time adjustment, and noise-free rotary control to your mobile transceiver with this genuine OEM-spec Dual Concentric Potentiometer Assembly. Sourced under Galaxy factory part number RV50303578 (designated as Pot 20 on official factory parts control charts), this multi-section control pairs a 50K Linear Taper (50KB) element and a 50K Audio / Logarithmic Taper (50KA) element on independent concentric shafts, serving as the exact factory service replacement for front-panel Echo and Time control assemblies across Galaxy DX45 and DX48 mobile transceiver chassis platforms.

Product Specifications & Technical Data

  • Galaxy Factory Part Number: RV50303578
  • Parts Chart Designator: Pot 20
  • Component Type: Dual Concentric Rotary Panel-Mount Potentiometer (Non-Switched)
  • Resistance Ratings & Tapers:
    • Outer Shaft / Section 1: 50kΩ Linear Taper ("B" Curve / 50KB / Echo Volume Level Control)
    • Inner Shaft / Section 2: 50kΩ Audio / Logarithmic Taper ("A" Curve / 50KA / Echo Delay Time Control)
  • Circuit Schematic Function: Front-Panel Dual Concentric Variable Control for Transmit Digital Echo Volume & Delay Time Level Adjustment
  • Shaft Geometry: Dual Concentric Independent Shafts (Designed for Stacked Outer/Inner Front Control Knob Sets)
  • Mounting Configuration: Threaded Metal Bushing with Lock Washer & Hex Nut for Sub-Chassis Panel Mounting; Direct PCB Solder Pins
  • Quality Standard: 100% Factory Original Equipment Manufacturer (OEM) service replacement component
  • Compatible Radio Models & Chassis:
    • Galaxy DX 45 Mobile Transceiver
    • Galaxy DX 48 Mobile Transceiver
    • Select Galaxy, Ranger, and EPT-series mobile chassis platforms requiring the RV50303578 (Pot 20) dual concentric echo/time assembly

Installation & Bench Notes

  • Diagnoses & Solves: Scratchy or erratic echo/delay modulation, dead spots across rotation ranges, static popping during front-panel adjustments, or mechanically bound concentric control shafts on mobile sub-panels.
  • BENCH INSTALLATION PROCEDURE:
    • Disconnect DC power from the transceiver chassis and remove top and bottom outer enclosure covers to access the front sub-chassis PCB.
    • Loosen set screws or carefully pull off both the inner and outer front-panel concentric control knobs.
    • Unscrew the front bezel retaining hex nut and lock washer from the threaded metal bushing.
    • Desolder the PCB solder pins from the dual potentiometer terminals using a temperature-controlled station and desoldering pump, taking careful note of pin wiring layout for both the Echo section (50KB) and Time section (50KA).
    • Remove the damaged original potentiometer assembly from the front mounting sub-bracket.
    • Position the new RV50303578 potentiometer into the panel cutout, ensure proper concentric shaft alignment, and secure it firmly using the washer and hex nut.
    • Solder the circuit connections to the PCB pads using 63/37 eutectic solder, verifying clean solder joints without bridging adjacent carbon element pins.
    • Reinstall the inner and outer control knobs, check shaft rotational clearance, power up the transceiver into a dummy load, and test echo volume scaling and delay time adjustment across full rotary travel.
