Galaxy DX2547 Channel Display RED

$7.95
In stock
(0) Write a Review
SKU:
EX03N40488

Product Description

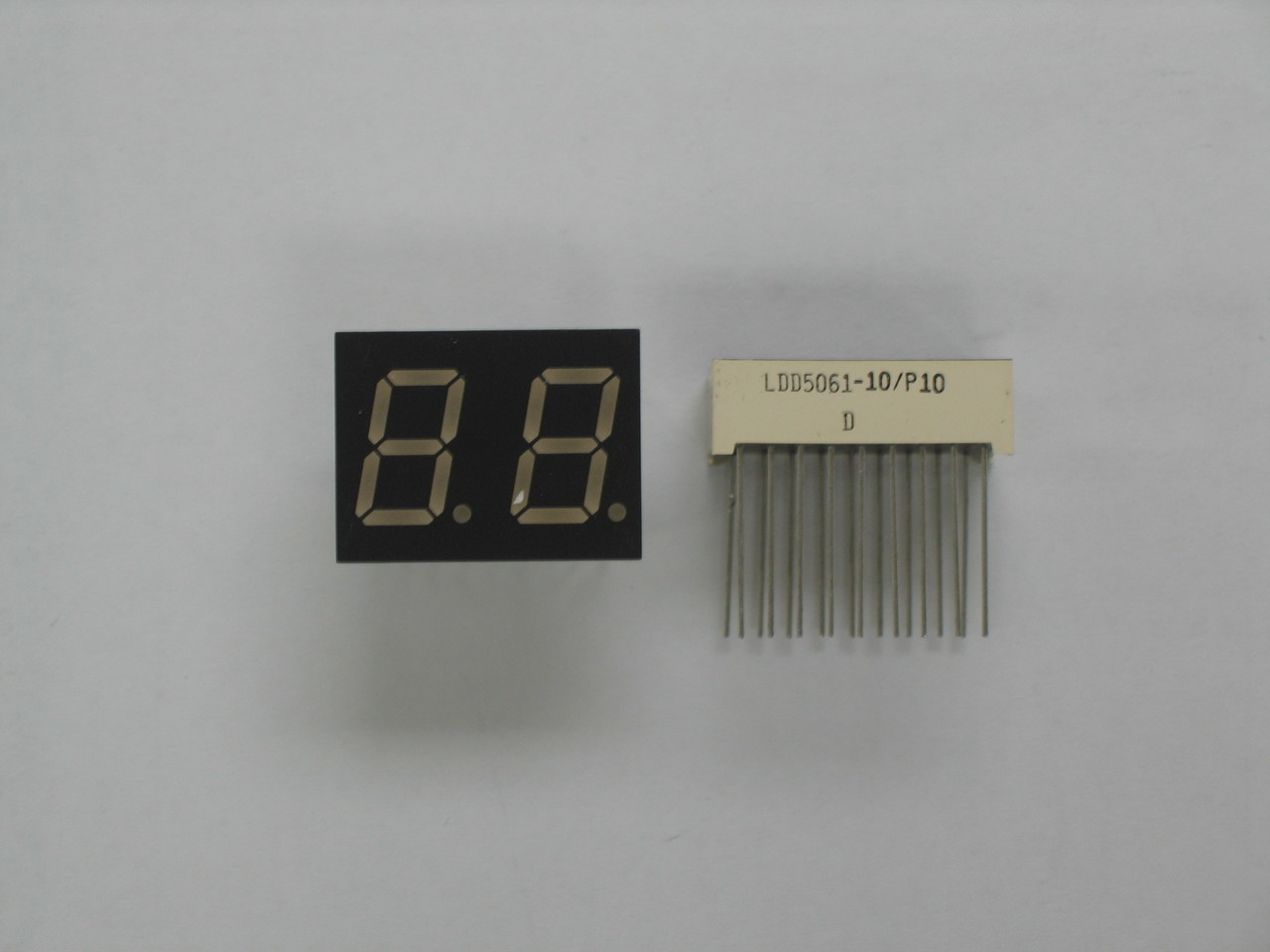

Galaxy Red Common Anode 2-Digit LED Channel Display (Part # EX03N40488) for DX2547 Base Station

Restore sharp, non-fading red channel readout visibility across your Galaxy base station transceiver with this genuine OEM-spec Red 2-Digit Common Anode 7-Segment LED Channel Display Module. Sourced under original Galaxy part number EX03N40488 (stamped with factory component part number LDD5061-10/P10), this precision 2-digit display indicator provides exact pin configuration, correct Common Anode wiring, and vibrant red segment output engineered specifically for the front-panel channel readout PCB on the flagship Galaxy DX2547 AM/SSB base station.

Product Specifications & Technical Data

  • Manufacturer Part Number: EX03N40488
  • Component Factory Stamping / Marking: LDD5061-10/P10
  • Component Type: 2-Digit 7-Segment LED Channel Readout Display Module
  • Circuit Configuration: Common Anode
  • Emitted Color: High-Visibility Red (~635nm)
  • Circuit Schematic Function: Visual 2-digit channel indicator driven by decoder/driver logic on the front display PCB
  • Mounting Configuration: Multi-Pin Through-Hole DIP Solder Mount PCB Header
  • Quality Standard: 100% Factory Original Equipment Manufacturer (OEM) service replacement component
  • Compatible Radio Models & Chassis:
    • Galaxy Base Stations: DX2547 (AM/SSB Base Station)
    • Select Ranger and RCI base station chassis requiring the LDD5061-10/P10 Common Anode red 2-digit display module

Installation & Bench Notes

  • Diagnoses & Solves: Missing or dead LED segments (partial digit readout), dim digits, flickering numbers, or complete segment breakdown caused by internal diode junction failure or damaged lead pins.
  • BENCH INSTALLATION PROCEDURE:
    • Disconnect AC power cable from the transceiver chassis and ensure internal high-voltage power supply capacitors are completely discharged before starting repair.
    • Remove cabinet covers and unbolt front panel bezel assembly hardware to gain access to the channel readout display PCB.
    • Desolder all pins of the defective LDD5061-10/P10 display module using a temperature-controlled desoldering iron with vacuum suction, taking care not to overheat or lift fragile double-sided PCB copper pads.
    • Clean through-hole solder pads thoroughly with isopropyl alcohol and desoldering braid.
    • Verify Common Anode pin orientation of the new EX03N40488 display module against the PCB silkscreen before inserting.
    • Solder all display pins securely using 63/37 eutectic solder, ensuring clean joints without shorting bridges between adjacent header pins.
    • Power on the base station and switch through all channel positions to verify 100% segment illumination and clear digit formation.
