Product Description
The T80-6 is a precision-engineered toroidal core made from Mix 6 carbonyl iron powder. With a nominal outer diameter of 20.2mm (0.795 inches), this core is optimized for high-frequency applications requiring low loss and high Q performance. Its stable permeability and compact form factor make it ideal for RF designs where efficiency and consistency are paramount.
Applications
The T80-6 core is widely used in:
- Amateur radio filters
- RF transformers in communication equipment
- Broadband impedance matching networks
- High-Q inductors
Its frequency versatility and mechanical stability make it a trusted choice for both commercial and industrial RF designs.
Advantages
- Low core loss at RF frequencies
- Stable performance across temperature variations
- Excellent for moderate bandwidth designs
MIX 6 - Key Features
Mix 6 is a carbonyl iron powder formulation tailored for RF applications:
- High Q factor up to 40 MHz
- Ideal for moderate band transformers (200–400 MHz)
- Permeability: 8.5μ
- Designed for RF communication systems requiring low loss and high stability

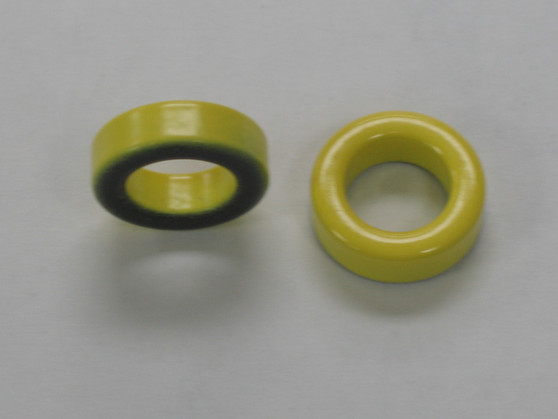

- T80-6 Toroid Core Yellow / Clear
- .800 X .480 X .250 INCH
