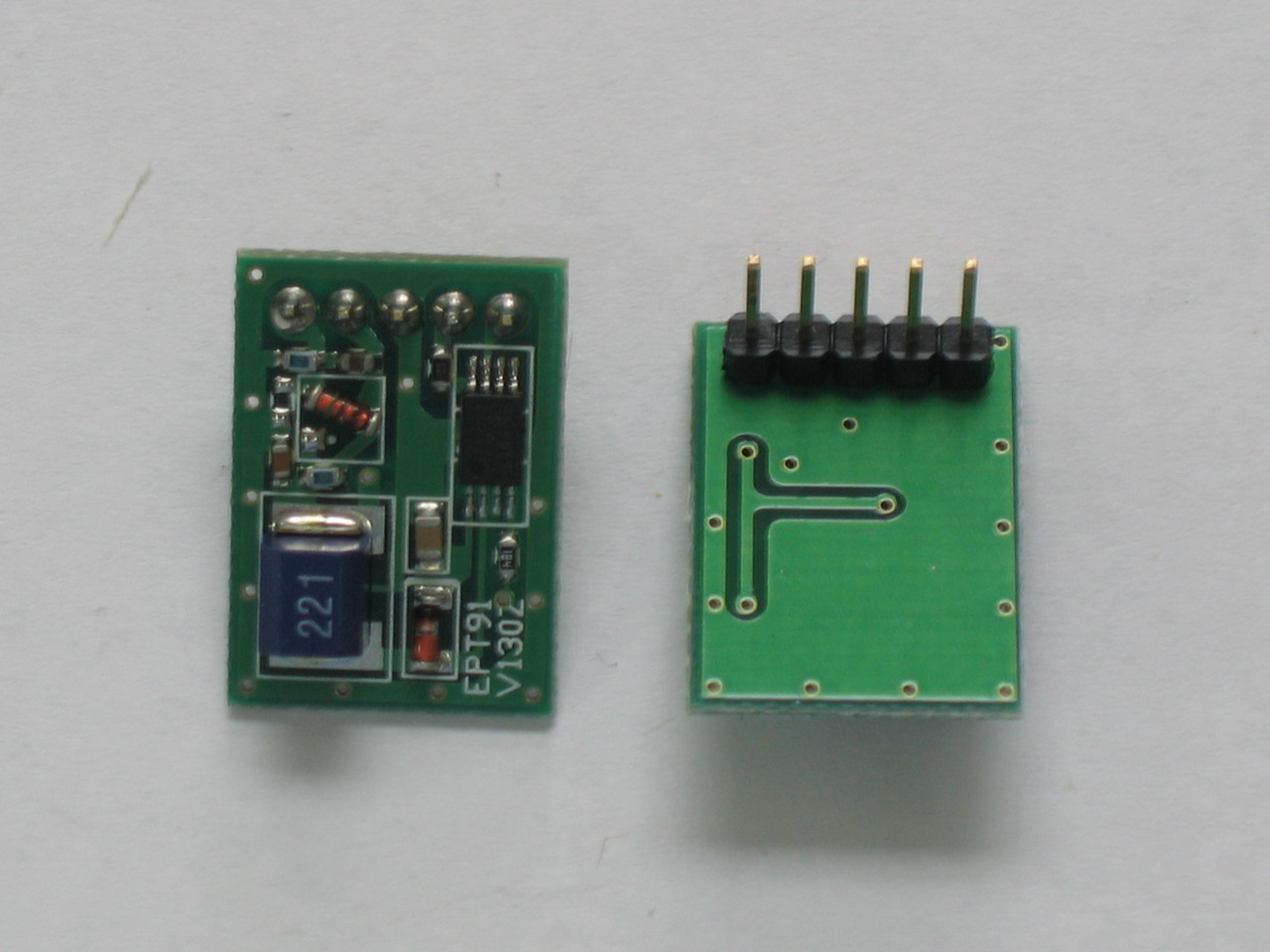

Galaxy DX-48T EL Driver Board — Dedicated (Assembly # T-141Q-P14 / Board # EPT91V130Z)
Restore proper high-voltage AC backlighting and uniform StarLite faceplate illumination to your high-power mobile transceiver with this genuine OEM Galaxy DX-48T EL Driver Board (Factory Assembly Part Number T-141Q-P14, Circuit Board Number EPT91V130Z). Engineered specifically for the Galaxy DX-48T chassis architecture, this dedicated inverter sub-assembly converts DC chassis voltage into the precise high-frequency AC drive signal required by the StarLite backlit faceplate overlay without bleeding or voltage drops.
⚠️ HIGH-VOLTAGE AC WARNING, REVISION VARIATIONS, ESD & NO-RETURN POLICY
• High-Voltage AC Output Hazard: This inverter generates high-frequency alternating current (typically 80V–120V AC) to power the electroluminescent faceplate. Never touch the output pins or EL foil terminals while the radio is powered on to avoid a sharp electrical shock.
• Board Revision & Silk Screen Check: Verify your radio's internal EL board silkscreen. This part number (EPT91V130Z / Assembly T-141Q-P14) is the dedicated factory revision for the DX-48T. (Note: Later generic replacement runs such as EPT91V131Z may feature slightly different component placements or plug orientations and can require minor harness adaptation).
• No-Return Policy Notice: Due to sensitive inverter oscillator components, high-voltage transformer windings, and soldered harness connections involved, electronic sub-assembly boards are strictly non-returnable once installed, modified, or powered up.
Product Specifications & Technical Data
- Manufacturer / Brand: Galaxy / Ranger (Factory OEM Service Replacement Part)
- Factory Assembly Part Number / SKU: T-141Q-P14
- PCB Board Number / Silkscreen: EPT91V130Z
- Component Designation: Electroluminescent (EL) Inverter Driver Printed Circuit Board Sub-Assembly
- Function: Converts DC power into high-frequency AC current to illuminate the StarLite front faceplate panel backlighting
- Mounting & Fitment: Direct Factory Dedicated Replacement for Galaxy DX-48T Mobile Transceivers
- Quality Standard: 100% Genuine Factory Original Equipment Manufacturer (OEM) Electronic Component
- Compatible Radio Models:
- Galaxy Mobile Transceivers: Galaxy DX-48T (Dedicated EPT91V130Z chassis application)
Installation & Bench Notes
- Diagnoses & Solves: Completely dark, flickering, or uneven StarLite faceplate backlighting, high-pitched buzzing inverter transformers, and failed panel illumination.
- BENCH INSTALLATION PROCEDURE:
- Disconnect the 13.8V DC power cord and antenna coaxial cable from the transceiver chassis. Remove the top and bottom cabinet covers to locate the EL driver board mounting bay.
- Photograph and label all incoming DC power, ground, and EL output leads connected to the existing EPT91V130Z board before unplugging.
- Unscrew the mounting hardware securing the faulty EL driver board and lift it clear of the chassis standoffs.
- Position the new EPT91V130Z (T-141Q-P14) board squarely onto its standoffs, ensuring zero tension on the mating wiring harness.
- Reconnect power and output lines strictly according to your reference photos. Apply power on the bench, verify stable, even StarLite faceplate backlighting across the front panel, and close the cabinet covers.
