Product Description

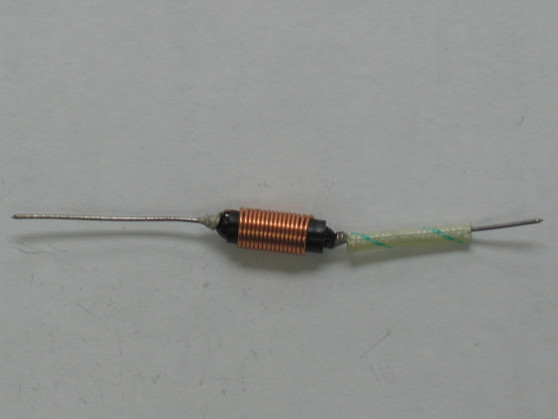

0.47 µH Heavy-Duty RF Choke (RFC) — DC Power Jack Line Filter (Galaxy / Ranger OEM Spec)
Suppress alternator whine, eliminate high-frequency radiated noise injection, and prevent RF feedback from bleeding backward down the DC power harness with this genuine OEM-spec 0.47 µH Power Lead RF Choke (RFC). Positioned directly inline at the $+13.8\text{V}$ DC power input jack / fused power lead entry point on Galaxy and Ranger mobile transceivers, this heavy-duty axial choke blocks high-frequency RF energy from entering or exiting the mainboard power bus while offering near-zero DC resistance to the operating current.
Product Specifications & Compatibility
- Inductance Value: $0.47\ \mu\text{H}$ ($470\text{ nH}$)
- Component Function: Power Input RF Choke / DC Line Filter / Alternator Whine Suppression Inductor
- Current Rating: High-Current Copper Winding rated for transceiver full-load draw ($5\text{A}\text{--}10\text{A}+$ continuous DC)
- Construction: Heavy-gauge enameled copper wire wound on a high-saturation ferrite core / axial leaded package
- Quality Standard: 100% Factory Original Equipment Manufacturer (OEM) service replacement component
- Compatible Radio Models: Galaxy DX series (DX33, DX44, DX55, DX66, DX77, DX88, DX99, DX939, DX959, DX94HP, DX98VHP), Ranger RCI series, Connex, and related EPT3600 / PC-833 mainboards utilizing DC power input line filters
Bench Installation & Tech Notes
- Fixes severe vehicle alternator whine in receive audio, RF feedback squeals when keying the transmitter, unstable driver stages caused by power bus oscillation, or open-circuit power input failure due to a burnt/overheated choke winding.
- HIGH-CURRENT SOLDERING GUIDELINES: Because this choke ties directly into the main $+13.8\text{V}$ power jack input pads (often tied to heavy copper ground planes or wide power traces), use a high-wattage bench iron ($60\text{W}\text{--}80\text{W}$) with a broad chisel tip. Maintain contact long enough to achieve a bright, shiny solder connection without cold joints or lifting the heavy power input pads.
- Bench Safety & Polarity Check: Always disconnect the external DC power cable before servicing the rear power jack assembly. Inspect the physical spacing of the axial leads after installation to ensure they do not short against the metal chassis or adjacent electrolytic filter capacitors.
