Final / Driver Ceramic Insulating ring

$1.25
In stock
(0) Write a Review
SKU:
XZZZ90003Z
Bulk Pricing:
Buy in bulk and save

Product Description

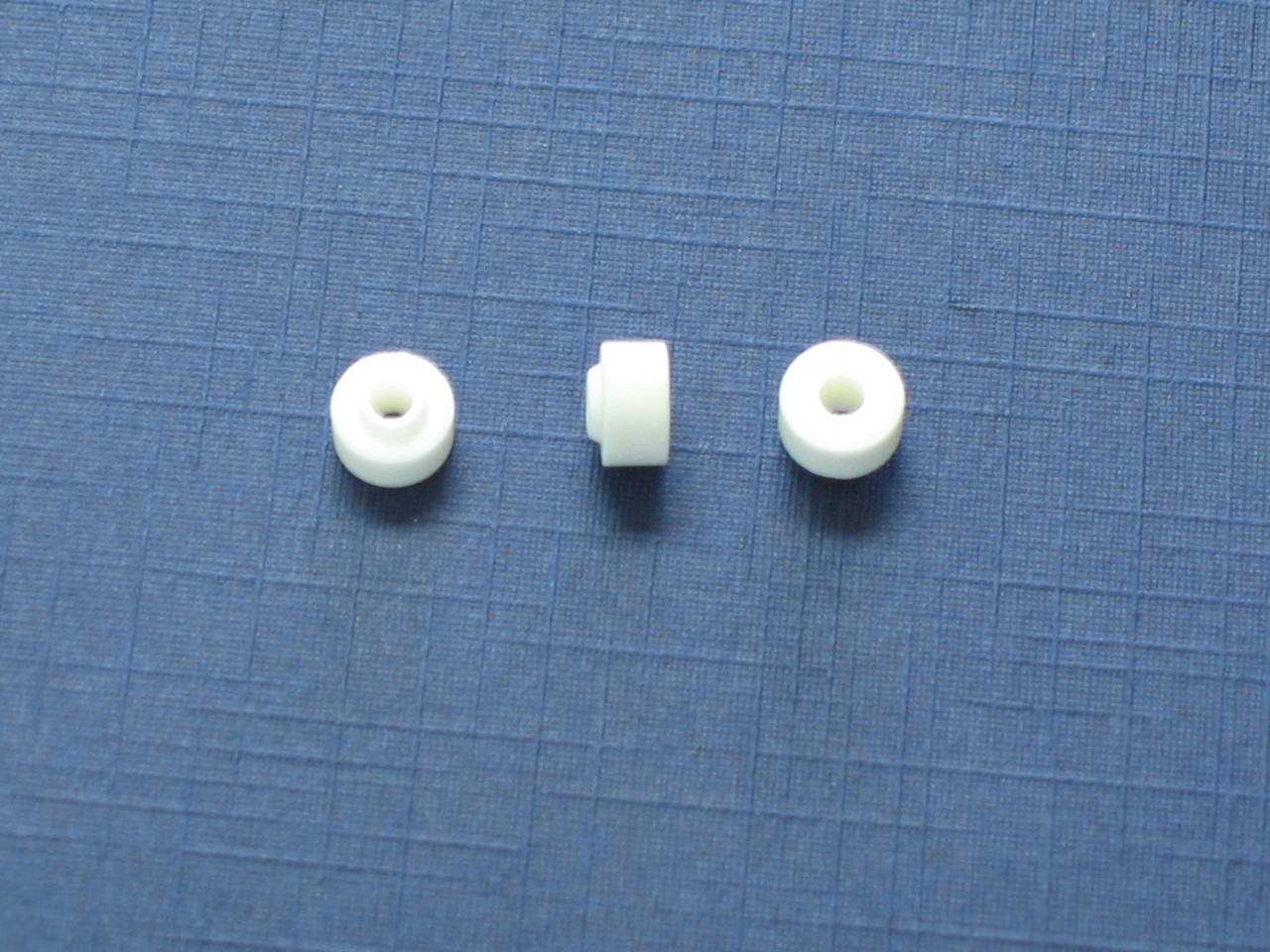

RF Final & Driver Transistor Ceramic Insulating Bushing / Washer (Part # XZZZ90003Z)

Ensure absolute electrical isolation and prevent catastrophic high-voltage shorts to chassis ground with this genuine OEM Ceramic Mounting Insulating Ring Bushing. Manufactured under factory part number XZZZ90003Z, this precision-machined ceramic shoulder washer isolates the mounting screw shank from the metal tab/flange of RF driver and final power transistors (TO-220 / TO-247 packages) on Galaxy and Ranger amplifier decks.

Product Specifications & Compatibility

  • Factory Part Number: XZZZ90003Z
  • Component Type: Precision High-Temperature Ceramic Mounting Insulator Ring / Shoulder Bushing
  • Unit Quantity: Sold individually (1 Ring per order)
  • Quality Standard: 100% Factory Original Equipment Manufacturer (OEM) service component
  • Compatible Radio Models: Galaxy, Ranger, RCI, and related mobile/base station transceivers utilizing TO-220 or TO-247 packaged RF final drivers, output transistors, or power MOSFET heatsink assemblies

Bench Installation & Tech Notes

  • Replaces cracked, missing, melted, or physically distorted plastic/ceramic transistor mounting bushings that lead to shorted RF output stages or blown DC power fuses.
  • ELECTRICAL ISOLATION WARNING: High-power RF driver and final transistor tabs (collector/drain) carry positive DC supply voltage. The ceramic shoulder of this washer must pass through the transistor tab mounting hole to prevent the metal screw shank from shorting directly against the transistor tab.
  • Bench Verification: Always verify complete electrical isolation with a digital multimeter (reading infinity $\Omega$ between the transistor tab/screw head and chassis ground) prior to connecting DC power.
  • Torque Sensitivity: Ceramic bushings offer superior thermal stability over plastic alternatives, but can fracture if over-torqued. Tighten the mounting screw evenly with appropriate torque to clamp the transistor firmly against the mica/silicone insulator without cracking the ceramic ring.
